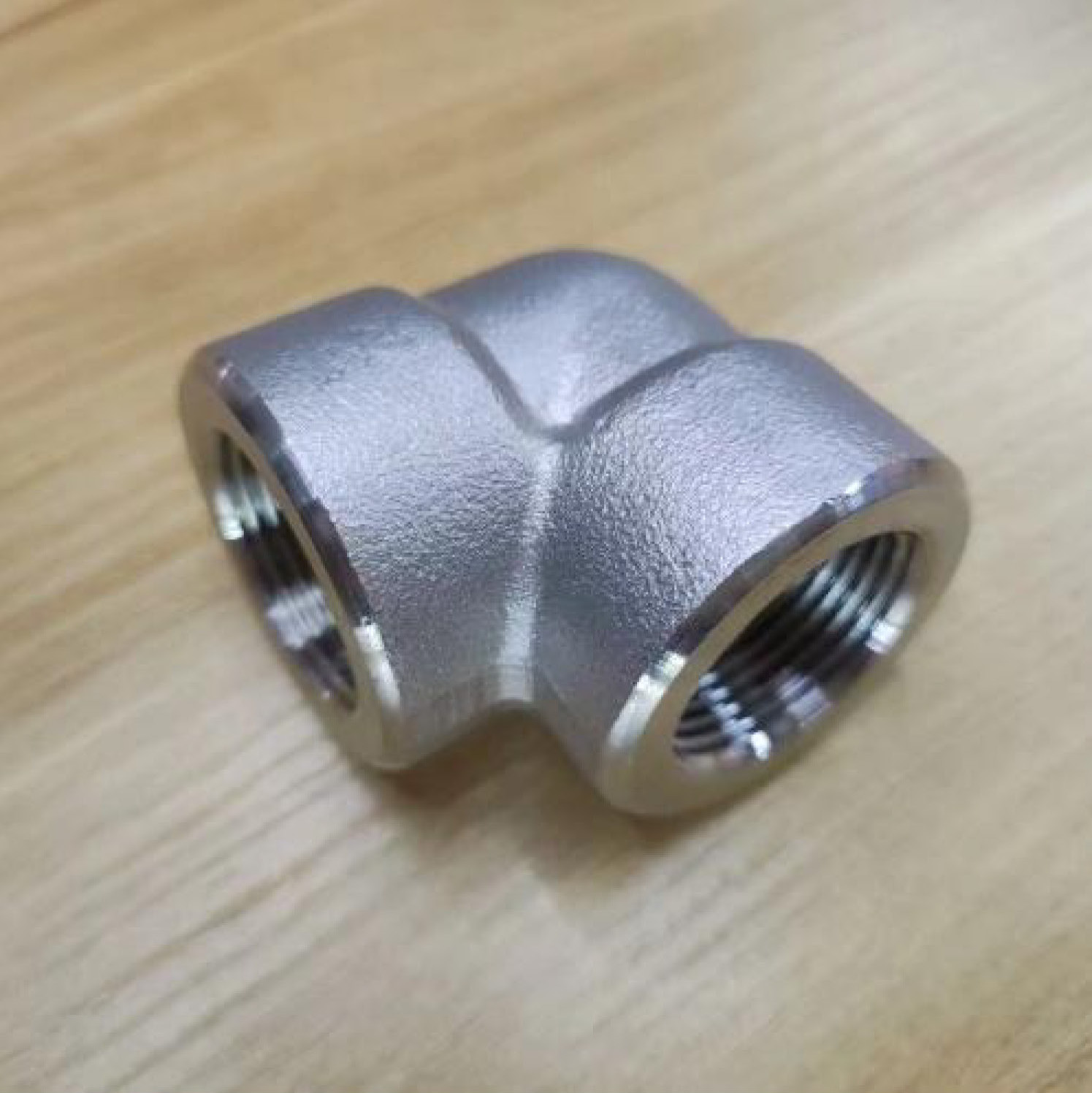

Threaded Elbows

Description

Designed for systems requiring flexibility, maintenance access, or where welding is impractical, our forged threaded elbows provide a robust and reliable solution for changing flow direction. Manufactured to ASME B16.11 standards from ASTM A105 carbon steel or A182 stainless steel, these elbows feature precision-cut NPT (National Pipe Taper) threads that create a pressure-tight seal with proper thread engagement and sealant.

Key Features & Technical Advantages:

• Forged Durability: The forging process aligns the grain structure for maximum strength at the bend, providing superior resistance to pressure, mechanical stress, and water hammer compared to cast alternatives.

• Precision Threading: CNC-cut NPT threads ensure consistent taper, pitch, and depth for leak-free connections with standard threaded pipe, minimizing the risk of galling or cross-threading.

• Serviceability & Modularity: The primary advantage—allows for easy disassembly, modification, or component replacement without cutting or welding, significantly reducing downtime for maintenance and system reconfiguration.

• No Special Equipment Needed: Installation requires only standard pipe wrenches and appropriate thread sealant (Teflon tape, pipe dope, or anaerobic compound), eliminating the need for certified welders or hot work permits.

• Versatile Material Options: Available in carbon steel for general service, stainless steel (304/316) for corrosion resistance, and alloy steels for high-temperature applications.

• Pressure-Rated Design: Available in 2000#, 3000#, and 6000# pressure classes to match system requirements, with clear pressure-temperature ratings per ASME B16.34.

Specifications: Compliant with ASME B16.11. Materials: ASTM A105 (CS), A182 F304/F316 (SS). Standard angles: 90° and 45°. Size range: 1/8″ to 4″ NPS. Pressure Classes: 2000#, 3000#, 6000#.

Ideal For: Maintenance and repair work, fuel oil and lubricant lines, instrument air panels, water treatment plant piping, fire protection systems (where permitted), compressed air networks, and industrial plant utility lines.
