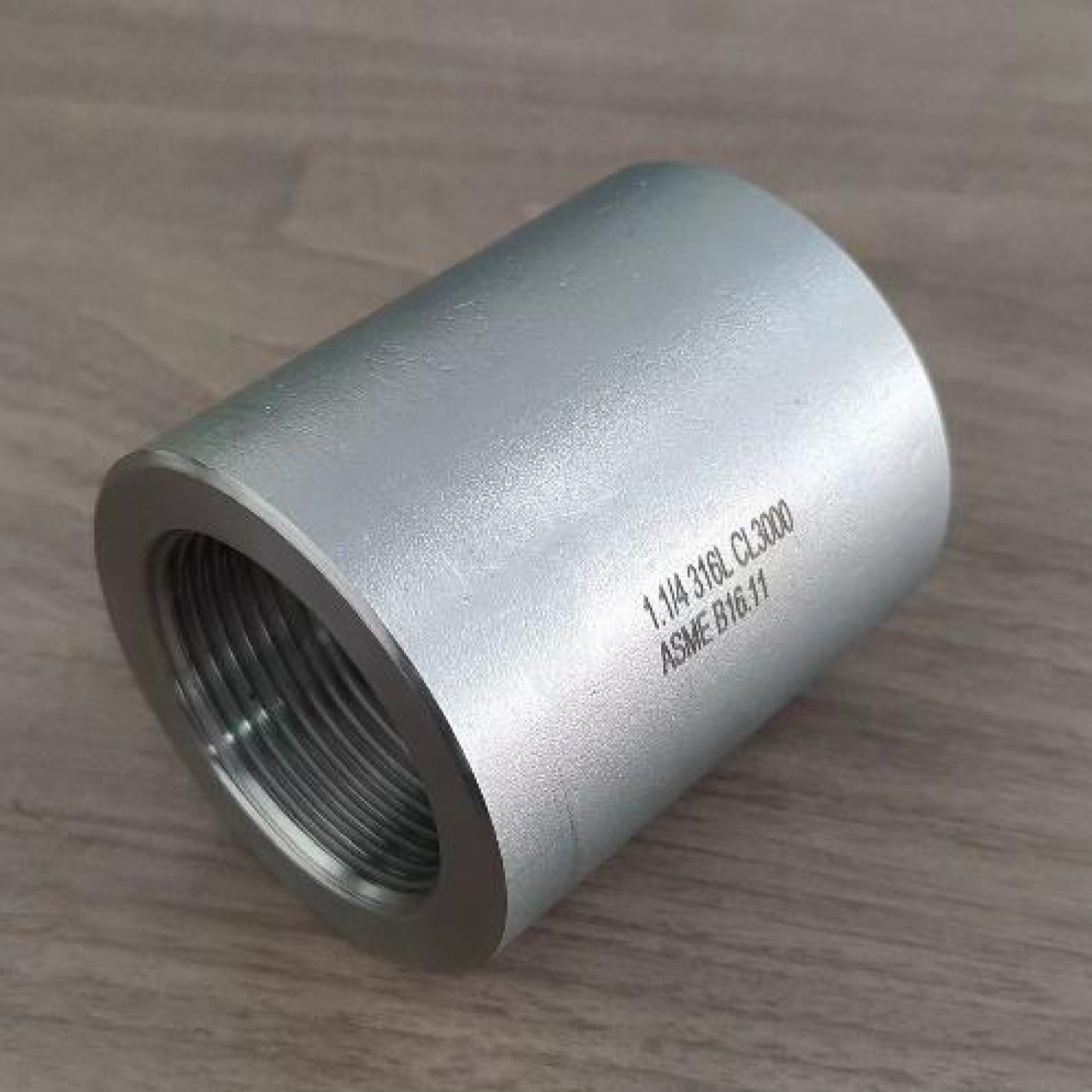

Threaded Couplings

Description

Our forged threaded couplings provide a reliable, maintenance-friendly solution for joining pipe sections where permanent welding is not desired or practical. Manufactured to ASME B16.11 standards from ASTM A105 carbon steel or A182 stainless steel, these fittings feature precision NPT (National Pipe Taper) threads that create a robust, pressure-tight seal when installed with appropriate thread compound. Designed for versatility and serviceability, threaded couplings are essential for system assembly, repair, and future modifications.

Key Features & Technical Advantages:

• Forged for Strength & Durability: The forging process provides superior grain structure and mechanical properties compared to cast or fabricated alternatives, ensuring high resistance to pressure, vibration, and mechanical stress.

• Precision NPT Threading: CNC-machined threads guarantee consistent taper, pitch, and depth, ensuring proper engagement and sealant distribution for leak-free performance in various fluid and gas services.

• Maximum Serviceability: The primary design advantage—allows for easy disassembly and reassembly of piping systems. This enables component replacement, system reconfiguration, and routine maintenance without cutting or welding, dramatically reducing downtime.

• Broad Application Range: Suitable for a wide array of services including water, air, oil, gas (with approved sealant), steam (within pressure-temperature ratings), and many process fluids.

• Full Range of Types: Available as Standard Couplings (two female threads), Half Couplings (one female thread, one plain end for welding), and Reducer Couplings (for connecting different pipe sizes).

• Pressure-Rated Design: Offered in 2000#, 3000#, and 6000# pressure classes with clear pressure-temperature ratings per ASME B16.34 to ensure safe selection for the application.

Specifications: Compliant with ASME B16.11. Materials: ASTM A105 (CS), A182 F304/F316 (SS), A153 (Galvanized). Size Range: 1/8″ to 4″ NPS. Pressure Classes: 2000#, 3000#, 6000#.

Ideal For: Plant utility piping (air/water), instrumentation lines, equipment skid connections, fire protection branch lines (where code-compliant), hydraulic return lines, fuel oil systems, and general maintenance/repair operations.
