Engineered for permanent, high-integrity piping systems where space constraints and joint strength are critical, our Socket Weld Elbows provide superior leak resistance and mechanical stability. These forged carbon or stainless steel fittings feature a socket depth that allows for precise pipe insertion, creating a robust fillet weld connection ideal for high-pressure, high-vibration, and small-diameter applications.
Key Features & Specifications:
Forged Construction: Manufactured from ASTM A105 carbon steel or ASTM A182 stainless steel grades (304/316) for exceptional strength and durability
Socket Depth Design: Standardized socket depth (typically ASME B16.11) ensures proper pipe insertion and weld preparation
High-Pressure Capability: Withstand extreme pressure conditions, making them superior to threaded connections in critical service
Space-Efficient Design: Compact construction allows installation in tight spaces where butt-weld elbows may be impractical
Reduced Turbulence: Smooth interior transition minimizes pressure drop and erosion at direction changes
Weld Quality: Pre-machined socket provides consistent weld gap and alignment for uniform fillet welds
Temperature Range: Suitable for service from cryogenic to high-temperature applications

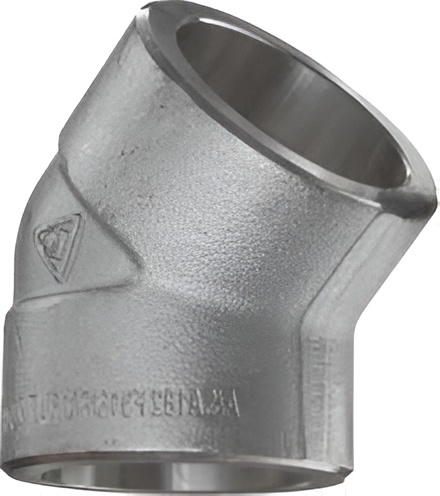

Available Configurations: 90° and 45° angles, with optional radiusing for improved flow characteristics
Applications:
High-pressure hydraulic systems
Instrumentation and sampling lines
Power generation piping
Process industry small-bore piping
Compressed air and gas systems
Refinery and chemical plant utility lines
Standards Compliance: ASME B16.11, ASTM A105/A182, MSS SP-79
