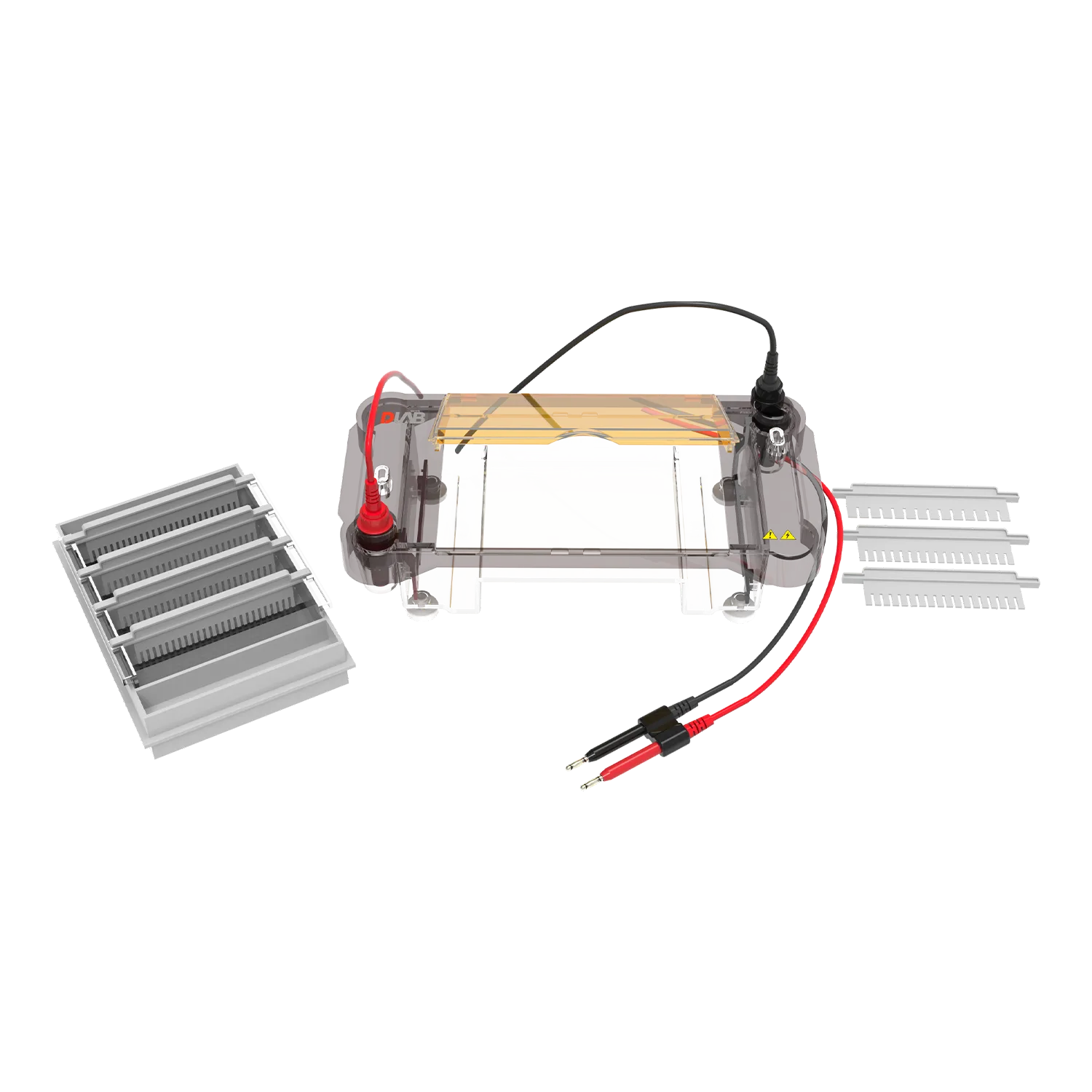

DL-SUB03 Multi-functional horizontal electrophoresis tank

Description

Features

• Suitable for nucleic acid electrophoresis, separation and identification of DNA, and determination of its molecular weight.
• Polycarbonate high-strength transparent plastic injection molding, ensuring no leakage and impact resistance.
• Professional shielding blue light clamshell design; opening the cover effectively dissipates heat.
• The bottom level adjustment knob can adjust the level of the electrophoresis tank.
• Two different gel sizes to meet the needs of both general and high-throughput electrophoresis.
• The front and back design of the gel box saves space.
• The background strip at the bottom of the tray is more conducive to observing sample loading.
• 99.99% high-purity platinum electrode, offering the best conductivity.

Technical Parameters

• Gel size (W × L): 130 × 200 mm, 130 × 150 mm
• Sample comb: 1.0 mm, 14, 18, 26 wells; 1.5 mm, 18 wells
• Buffer volume: 800 mL
