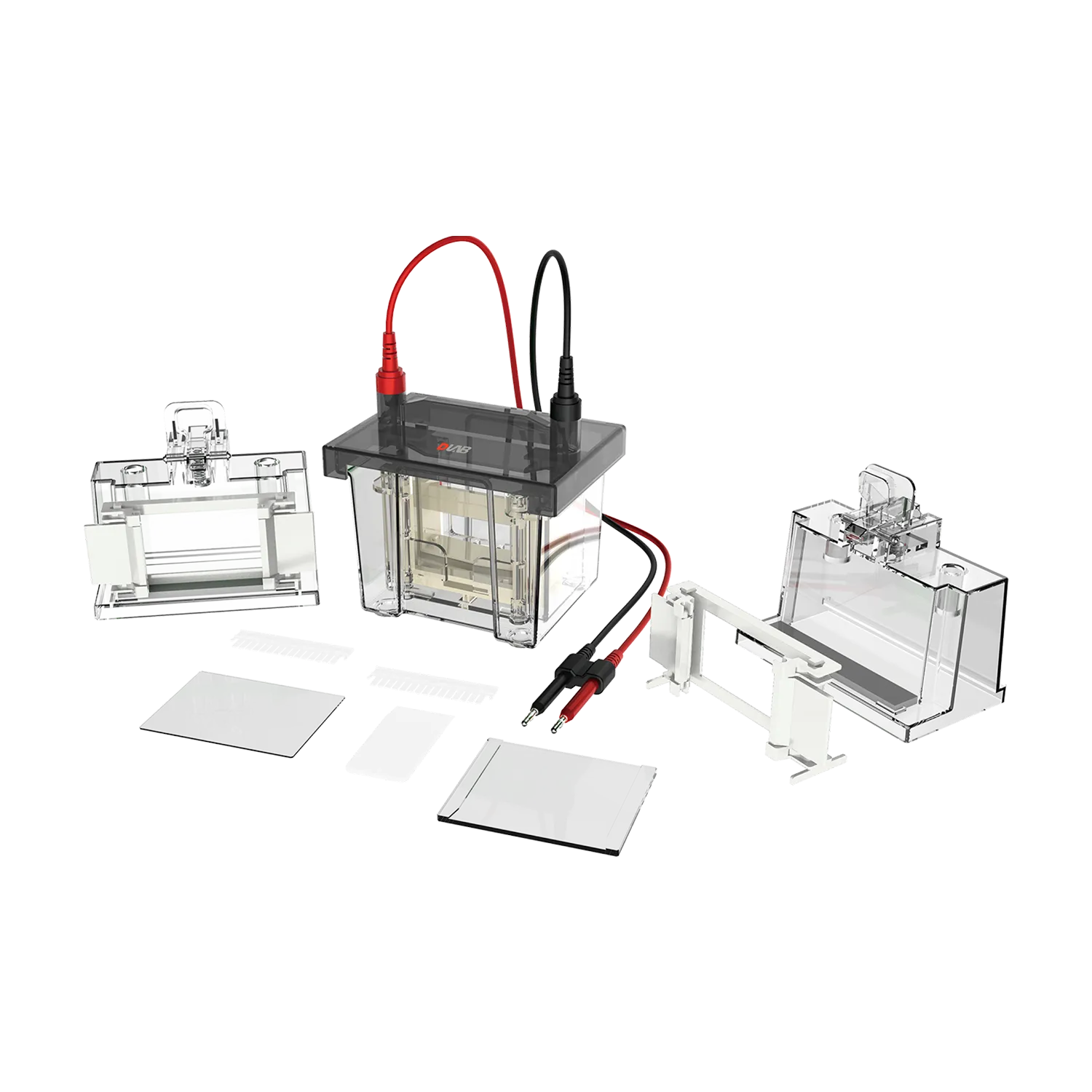

DL-Mini01 Vertical electrophoresis tank (double plate)

Description

Features

• This product is designed for vertical electrophoresis of a small amount of nucleic acid and protein samples.
• The integrated design of the glass plate and the gasket ensures no glue leakage.
• It can run two 8.3 × 7.3 cm gels at the same time.
• The special glue-making device is simple and reliable in operation.
• The silicone sealing pad is anti-aging and durable.
• The cover can be opened and the power will be cut off automatically to ensure the safety of the experiment.
• The limit function of the upper cover ensures that the positive and negative electrodes cannot be installed incorrectly.
• 99.99% high-purity platinum electrodes provide the best electrical conductivity, anti-corrosion, and aging resistance.
• Equipped with a variety of rubber plate thickness specifications and sample combs to meet different experimental requirements.
• It can be used together with the DL-ZY02.

Technical Parameters

• Gel area: 8.3 × 7.3 cm
• Gel thickness: 0.75, 1.0, 1.5 mm (optional)
• Optional tooth number of sample comb: 10, 15
• Glass size: Short glass plate (10.1 × 7.3 cm); long glass plate (10.1 × 8.2 cm)
